Particle generator, piston, fake track and PTO

Image:

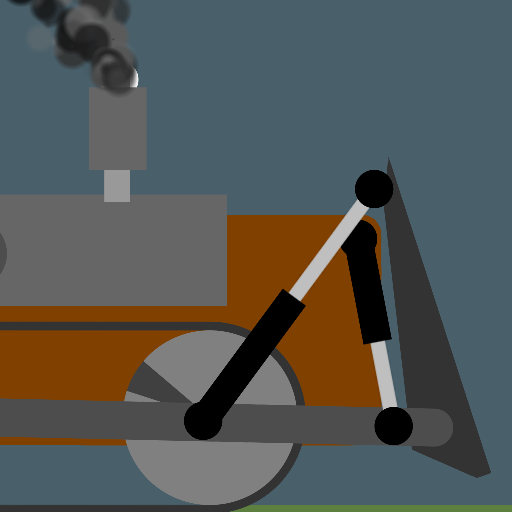

screenshot of the scene

Author: JakubKubo

Group: Work in progress

Filesize: 64.38 kB

Date added: 2017-07-29

Rating: 5.5

Downloads: 308

Views: 69

Comments: 2

Ratings: 2

Times favored: 0

Made with: Algodoo v2.1.0

Tags:

Scene tag

First try to make Power-Take-Off:
- PTO is axle connnecting tractor/truck and trailer/attachments (mower, crane)
- Have unlimited length, yellow rod have no collision, density like air, can transfer +inf torque and rpm

Fake track:
- ONLY grey wheels need to be powered, track (two lines and two half-circles) will adjust

Piston:
- !!!NEW!!! textures
- infinite length
- adjust spring constant and damping, more in scripts tab
- _min and _max are minimum and maximum limit of lengths
- _up and _down are keys that controls piston
- _step mean how much spring will change length if key is pressed, higher values mean higher speed

Scripts:
> PTO:
Position of circles are send to the box where position, angle, length is calculated
Size => [math.dist(1pos, 2pos),0.3] <PTO rod is ~30cm thick>
Angle => math.atan2(1pos, 2pos) <angle between ends>
Position => (1pos+2pos)/2 <average position of ends>

Bugs:
- Do not use at 179 Hz or more, will freeze / glue itself to background (i don´t know why)
- Textures need a "little bit" of work
Last edited at 2017/12/19 18:34:24 by JakubKubo
