Rotating Cable Drive System

Image:
screenshot of the scene

Author: Jimmyfisherman

Group: Default

Filesize: 33.34 kB

Date added: 2014-09-22

Rating: 5.6

Downloads: 1854

Views: 445

Comments: 3

Ratings: 2

Times favored: 0

Made with: Algodoo v2.1.0

Tags:

Scene tag

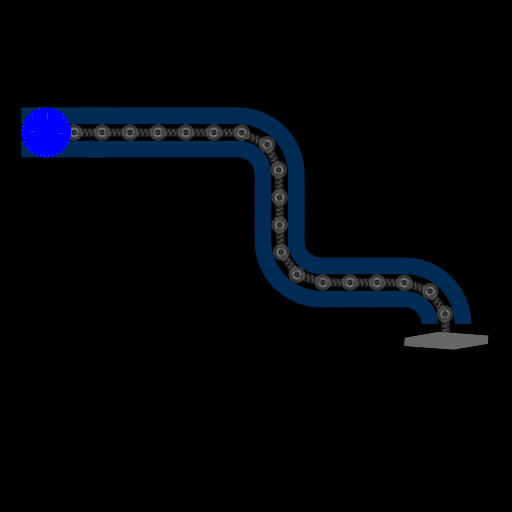

Press the up arrow to power the input. Press the down arrow to brake the input. The chain of circles will work at any length, and also in any shape. The circles are not fixed in place and therefore can be used in moving systems where variable length is desirable, like in a robotic arm for the hand control.
