Hard Tutorial: Automatic Gearbox

Image:

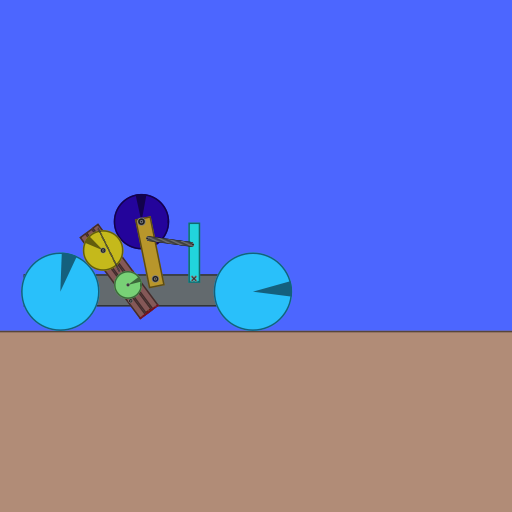

screenshot of the scene

Author: The Linkage

Group: Default

Filesize: 61.92 kB

Date added: 2014-01-22

Rating: 6

Downloads: 1381

Views: 479

Comments: 8

Ratings: 3

Times favored: 2

Made with: Algodoo v2.0.2 Edu

Tags:

Scene tag

This is the realistic but hard way to make a gearbox. This type of gearbox shifts when the engine gets to certain RPM rather than when the car gets to certain speed, making it much better if you have an engine that gets weak at high RPM, but is strong at low RPM. It can be adapted to almost any engine.

If your gearbox doesn't work well (gears overlapping, etc) try increasing density of the parts.

If you find any errors (or your gearbox doesn't work!) tell me, and I'll fix/add anything.

Press Return to go through steps!

The hardest part of this scene was the system to go through steps (I have two variables with strings of 11 values xD)

tell me if it was useful! It is pretty hard and heavy, but after some time of reading (and examinating the example at the scene start) you'll do it!
