The Linkages IRIS Engine Tuned

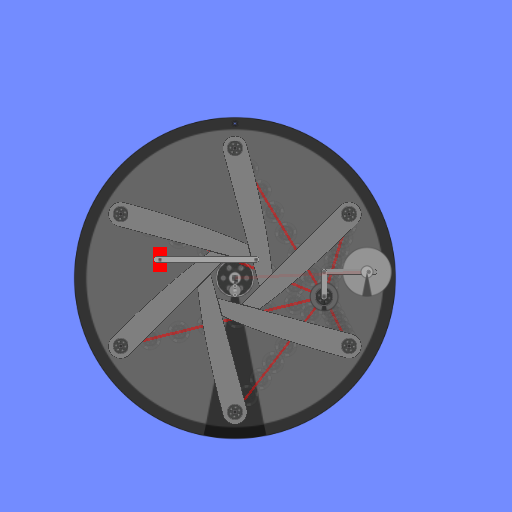

screenshot of the scene

Author: Christer

Group: Default

Filesize: 80.89 kB

Date added: 2012-10-23

Rating: 5.5

Downloads: 1263

Views: 527

Comments: 8

Ratings: 2

Times favored: 0

Made with: Algodoo v2.0.2 Edu


Scene tag

Changes from The Linkages original design:

*Changed the stretched hinges for the arms so they use bendhinge tech now so they dont get unsynced.

*Added scripted deletion of "power" circles to allow throttleability(is this even a word?).

*Added some basic Throttle.

Update: Changed starter direction since it seems to be faster going backwards

It now goes up to 85+ rad/s on full throttle and doesent get out of sync

It delivers ca 650 hp @580 rpm/6000nm but keep in mind it is over 6 meters in diameter! Maybe make an smaller one The linkage?;)

All creds to The Linkage for this great build! Hope you dont mind me uploading this? =)
