Lens Cutter

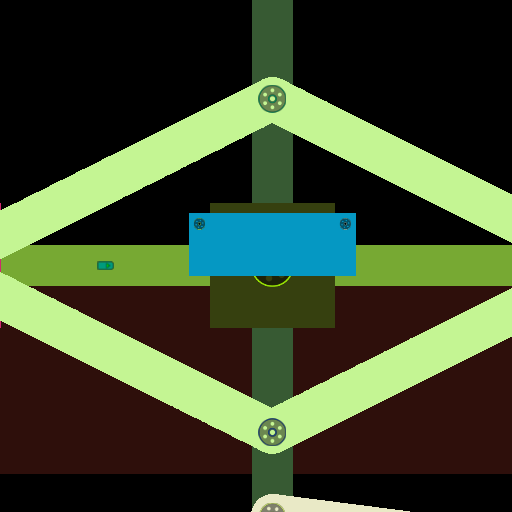

Image:
screenshot of the scene

Author: s_noonan

Group: Technical

Filesize: 46.19 kB

Date added: 2012-03-12

Rating: 6.8

Downloads: 1296

Views: 561

Comments: 4

Ratings: 5

Times favored: 0

Made with: Algodoo v2.0.1 Edu

Tags:
optics,
linkage

Scene tag

Lens maker uses Van Shooten's Hyperbola linkage to cut lens. Lenses made with a hyperbolic surface have sharper focus (less spherical abberation) than spherical lenses. Lens is attached to background with 2 axles. Delete axles, rotate lens 180 degrees, and connect to background to cut opposite surface. Copy and paste the finished lens into a drawing, change material to glass, and use. Hyperbolic and spherical lenses are shown below the mechanism to show the difference in focusing ability. Lens can be scaled to change diameter or focal point. Focal point can also be change by changing the refractive index of the glass.
Last edited at 2016/07/02 21:00:58 by s_noonan
Please log in to rate this scene
edit
Similar scenes
Title: Laser Portal using Optics
Rating: 5
Filesize: 73.37 kB
Downloads: 519
Comments: 0
Ratings: 1
Date added: 2016/05/25 09:38:09
Made with: Algodoo v2.1.0
Rating: rated 5
download
Title: k01 optics, colourful
Rating: 5
Filesize: 106.54 kB
Downloads: 193
Comments: 0
Ratings: 1
Date added: 2019/01/28 13:08:16
Made with: Algodoo v2.1.0
Rating: rated 5
download

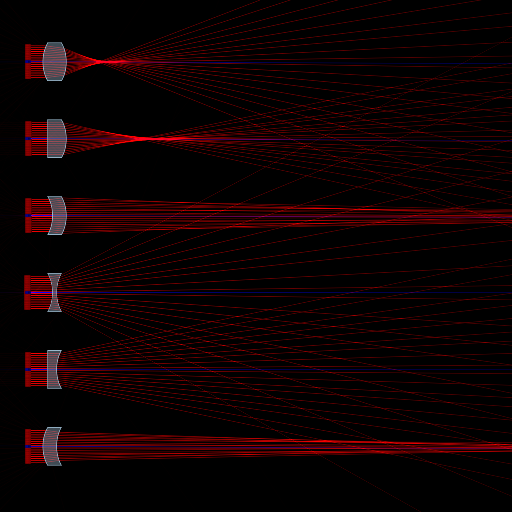

Title: Dan's Optics
Rating: 5
Filesize: 115.78 kB
Downloads: 253
Comments: 1
Ratings: 1
Date added: 2017/03/27 16:04:58
Made with: Algodoo v2.1.0
Rating: rated 5
download

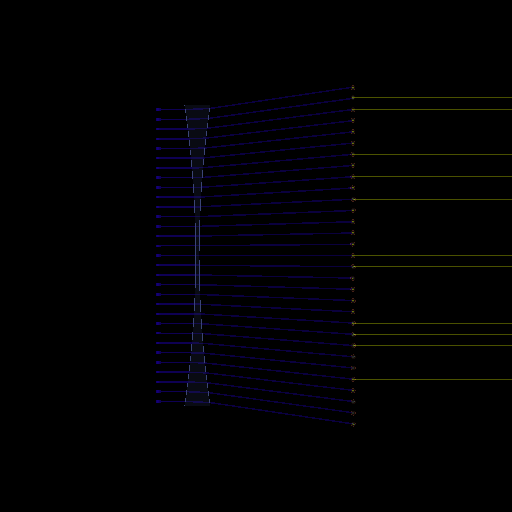

Title: Diverging Lens Maker (v2.0.2 b15)
