Slide Overload Protection A

Image:

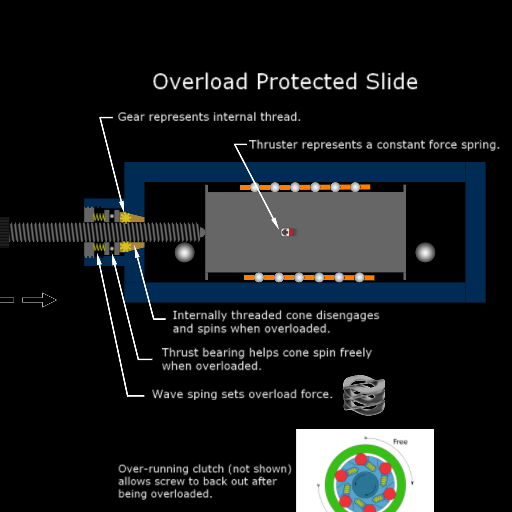

screenshot of the scene

Author: s_noonan

Group: Default

Filesize: 105.61 kB

Date added: 2024-03-02

Rating: 5

Downloads: 342

Views: 132

Comments: 4

Ratings: 1

Times favored: 0

Made with: Algodoo v2.1.0

Tags:

Scene tag

This slide has overload protection.
1. If the screw is retracted too much, the screw just comes out and no harm is done.
2. If the slide encounters blockage on the left, the max force on the blockage is the spring return force.
3. If the slide encounters blockage on the right, then the nut tilts in reaction to the force and binds the screw from turning.
Last edited at 2024/03/03 02:48:58 by s_noonan
Please log in to rate this scene
edit
Similar scenes
Title: Slide Overload Protection B
Rating: 5
Filesize: 61.11 kB
Downloads: 386
Comments: 0
Ratings: 1
Date added: 2024/03/02 18:15:13
Made with: Algodoo v2.1.0
Rating: rated 5
download
Title: Slide Overload Protection C
Rating: 5
Filesize: 97.47 kB
Downloads: 195
Comments: 0
Ratings: 1
Date added: 2024/03/09 10:53:09
Made with: Algodoo v2.1.0
Rating: rated 5
download
Title: Colossal Marble Machine V1.0.1
Rating: 5
Filesize: 162.2 kB
Downloads: 915
Comments: 0
Ratings: 1
Date added: 2018/07/11 13:16:24
Made with: Algodoo v2.1.0
Rating: rated 5
download
Title: Colt 1911 Prop for WOW Collab Update: 6-2-09
Rating: 5
Filesize: 85.21 kB
Downloads: 2314
Comments: 6
Ratings: 1
Date added: 2009/06/02 01:48:01
Made with: Phun
Rating: rated 5
download
Title: T-60B Tank
Rating: 5
Filesize: 0.54 MB
Downloads: 2799
Comments: 0
Ratings: 1
Date added: 2021/01/14 18:05:38
Made with: Algodoo v2.1.3
Rating: rated 5
download
Title: Object Overload Marbles
Rating: 5
Filesize: 0.61 MB
Downloads: 822
Comments: 0
Ratings: 1
Date added: 2015/07/21 16:09:38
Made with: Algodoo v2.1.0
Rating: rated 5
download
Could you explain a real world example of how this device is used? Thanks
Q: Could you explain a real world example of how this device is used?
A: No, because I don't know of any real world examples that use this concept. Same goes for design "B". I'm interested in simpler ideas for accomplishing the same task, ideas for improving the design, and reasons why the design might not work as intended. In design "A", the reaction of the tilted nut creates additional friction that subtracts from the available screw torque. I'm not absolutely certain it will work in real life.

P.S. The pivoting brake on design "A" is similar to the pivoting brake on a calk gun.
Thanks for the explanation of how it works. I wasn't sure about how those two pinion gears on each side of the screw could possibly work correctly as gears but now that you clarified the fact that they represent a single nut, it all makes sense. I now see how the "pivoting brake" works.

Even though I don't have anywhere near the mechanical expertise that you have, I still find this stuff to be very interesting and clever. Nice job on the scene!
Thanks.
