Anyone know or have a name for this mechinisim

Image:

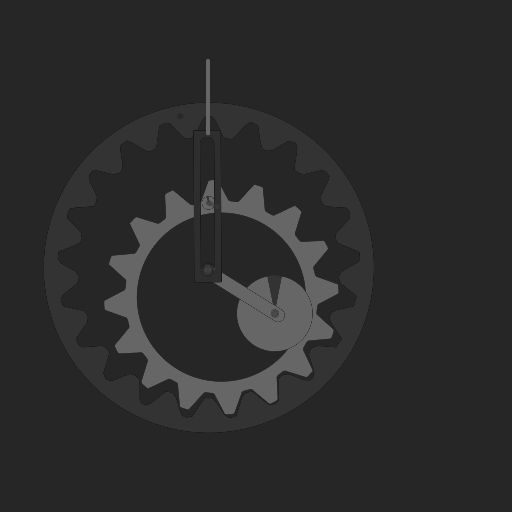

screenshot of the scene

Author: MrPigeon

Group: Default

Filesize: 33.38 kB

Date added: 2022-02-22

Rating: 5

Downloads: 483

Views: 196

Comments: 4

Ratings: 1

Times favored: 0

Made with: Algodoo v2.1.0

Tags:

Scene tag
i was trying to make the Cycloidal Drive mechinisim but made this
just hit play
Last edited at 2022/02/22 03:02:43 by MrPigeon
Please log in to rate this scene
edit
Xray
2022/02/22 03:08:10
I believe it's called "planetary gears", but not certain. If user s_noonan sees this, I'm sure that he would know.
The Linkage
2022/02/22 05:12:50
I know what you mean with "this", and it's probably not named - it's just a scotch yoke connected to a cycloid (not the mechanism itself - the trace that one point on the periphery of a rolling circle does is called a cycloid). so i don't know what kind of application it could have.
The cycloid is okay though. The problem with it is harnessing the power from the middle gear, which in most real life cases is flexible iirc.
MrPigeon
2022/02/22 12:14:04
okay, thanks
Nugget123
2022/02/23 14:18:43
Maybe the faster clock?
