Some AN94 (What I could make at least)

Image:

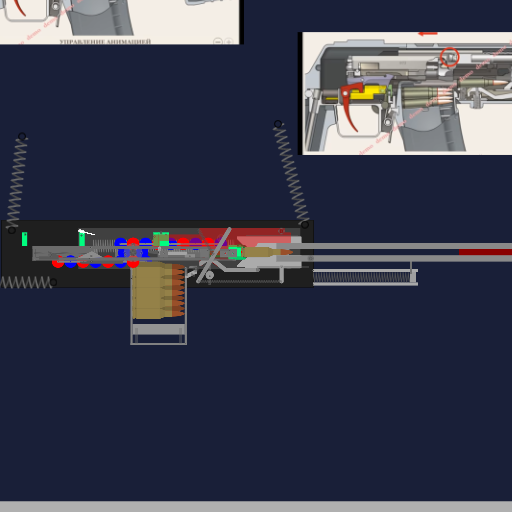

screenshot of the scene

Author: The Linkage

Group: Default

Filesize: 1.14 MB

Date added: 2017-11-29

Rating: 5.6

Downloads: 4613

Views: 487

Comments: 9

Ratings: 2

Times favored: 0

Made with: Algodoo v2.1.0

Tags:

Scene tag

I basically tried to make an AN94. The lack of documentation on it is really weird, considering that everyone knows it. I know that some Russian guys make the animated .swf of this gun, but I'm not going to buy it to make an Algobox scene!

As a placeholder I added a hook that allows the mechanism to go back into place and chamber a round. I have no idea how the real stop mechanism is. This is all that I could devise from the demo video on Youtube (screenies are from there)

Tap or hold W to fire. It should be used in 2 round bursts so if you hold it it might jam, dunno
