Stable Linear Actuator

Image:

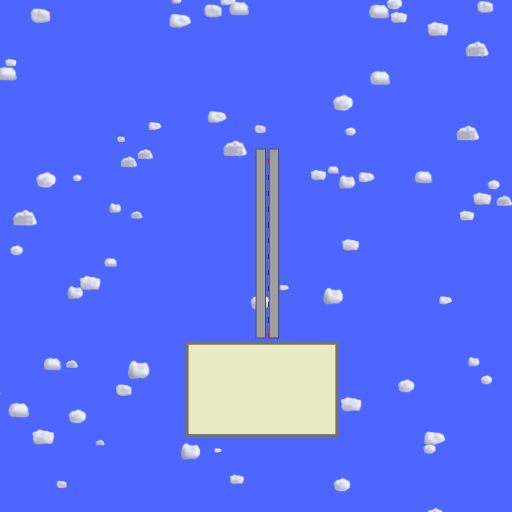

screenshot of the scene

Author: phunbox1 (Dominico)

Group: phunbox1

Filesize: 12.18 kB

Date added: 2009-01-14

Rating: 5.3

Downloads: 475

Views: 949

Comments: 3

Ratings: 4

Times favored: 1

Made with: Phun

Tags:

Scene tag

I`ve designed an alternative way to convert rotary motion into linear motion that bypasses the stretching of hinges that tends to cause a lot of power problems in many other designs where the linear segment is connected to the circle by a swiveling rod.

CONTROLS:
Right = clockwise
Left = counterclockwise
Down = Brake

ALL ARE TOGGLE

Feel free to use this design in anything you need it for! And I`m sure it can be scaled freely, as well as multiple linear lengths, segments and whatnot can be attached.

Have fun! And to adjust the drive hinge, just use the box that`s already up.
