Regarding "the first most detailed and realistic and the most precision vernier scale on Algodoo", this may be the most detailed and precision vernier, but it is not the most accurate because the vernier scales are not made correctly and the caliper measurements do not match Algodoo's.

Here are some suggestions:

1. Disable clouds.
2. Disable gravity.
3. Correct vernier scales.
4. Glue long scale to background.
5. Move thrusters from long scale to slider.
6. Trim the jaws so that they are parallel.
7. Scale the entire caliper so that the metric scale is related to the Algodoo scale by some integer (1 Algodoo meter = 10 caliper mm, for example).
8. Scale the English scale so that 25.4 mm = 1 inch.
9. Glue any loose graduations caused by scaling.
10. Remove thrusters and add drive wheel.

I did the steps listed above to your scene. I can post it as a response scene if OK with you.

That's exactly what I was going to say. See this
The vernier scale has 49 units of length from 0 to 10 on the metric part

danielreynard,

I don't see a response, so I'll post a response. Please let me know if it's OK or if you would like me to remove it.

remove what?

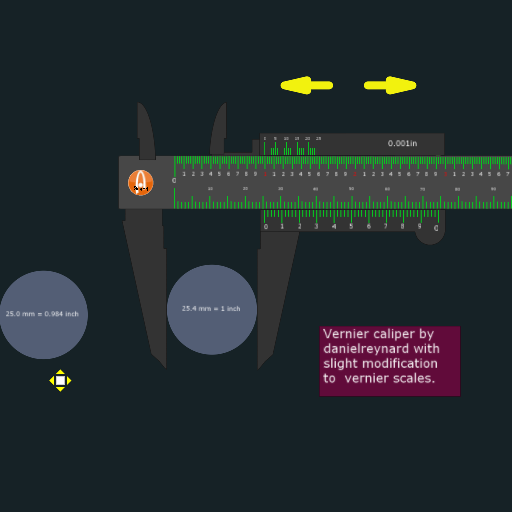

Remove Vernier Caliper Mod ?

Note that in metric, 100 vernier units = 99 main scale units, and in English 25 vernier units = 24 main scale units.

No don't remove the mod version. u can take vernier caliper mod for your own.
But pls keep the author who make the instrument.
So don't remove I appreciate your help.
