Algodoo

Logic Worksheet 75%

Before you do this Worksheet, you should have performed the scene 86644 and read its explainations, it is named: Logic example2 and you can find it in the algobox if you search for the number 86644.
Before you do a thing in algodoo, read this worksheet completely.

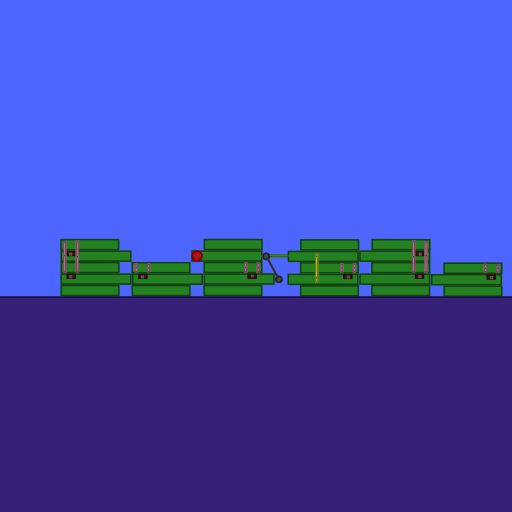

1) Build up the logical structure
[(N1^N2) ^ (N3vN4)] v [(N1vN2) ^ (N3^N4)]
(where "^" is a logical AND, and "v" is an "OR")
by inserting the squares N1... N4 into the logical operators of the second row; some of the outputs of these operators will be inputs for others.
Put the result of this structure into the input of the operator, that has N5 as output. N5 is allready in place for the "Solidmaker" S1.

2) Increase the beauty of the structure by placing the operators in a way so that it is more easy to understand ( use several rows for processing the result ).

3) Save your scenario as "mytrain".

4) Shoot balls into the wagons until the train starts moving. To shoot: start the simulation and klick on the white arc. The balls start near the mouseposition and have momentum in the direction that the purple-colored circle indicates.

5) Write down on paper which wagons are loaded.

6) Reload your scenario "mytrain" again, and repeat steps 4) and 5) another four times (so you have 5 times performed these steps).

7) Explain the name "75%" of the original Worksheet.
